Appendix C
A development-permit drawing sheet associated with DP26-0018, showing site and building design information.
Key facts
- Development Permit DP26-0018
- Issued 08/10/2026
- Drawing sheet marked Appendix C
Appendix C

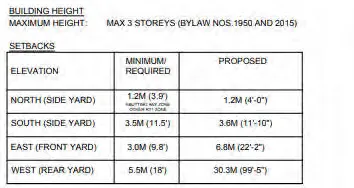

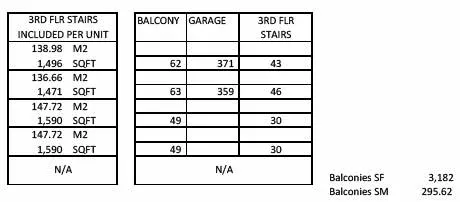

Site Plan

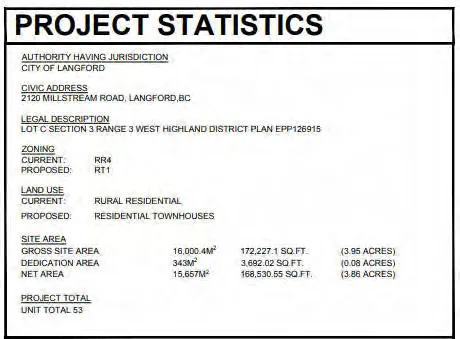

Project: 2124 Longspur Dr, Langford, BC
Drawing: SITE PLAN
Sheet: A0-0
Scale: 1:250
Date: 2026-08-05
Drawn by: BK
Checked by: MC
Architect: Matthew Cheng Architect Inc.
Address: UNIT 202 - 670 EVANS AVENUE, VANCOUVER, BC V6A 2K9
T: 604.731.3012
M: 604.649.0669
E: MATTHEW@MCAI.CA

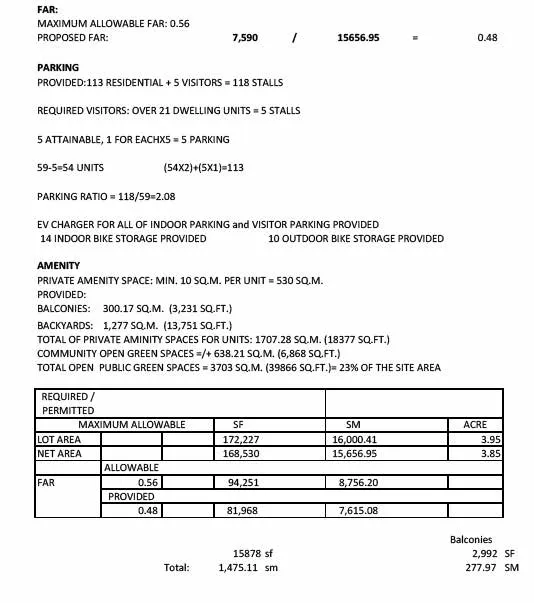

Site Plan Notes
- INDOOR EXTRA BIKE SPACE PROVIDED
- EV CHARGER FOR ALL VISITOR PARKINGS AND INTERIOR PARKINGS PROVIDED
- OUTDOOR ADULT GYM
- INDOOR BIKE STORAGE
- OUTDOOR BIKE RACK

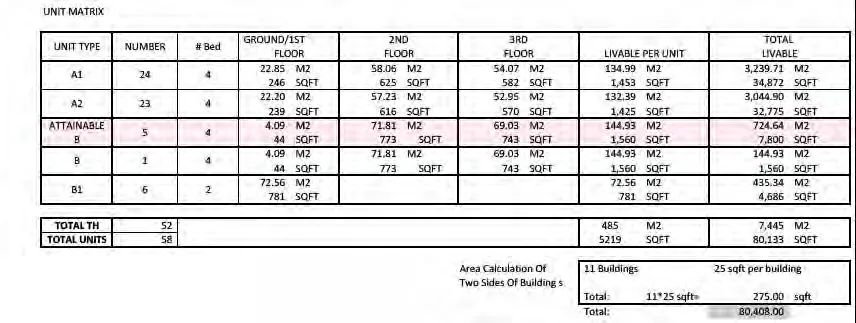

- ATTAINABLE UNITS: UPPER UNITS OF B-36 B-38 B-40 B-42 B-44
- UNITS RENTED AT MARKET
- ATTAINABLE UNITS OFFSITE
- OFFSITE VISITOR
- CEDARS FOR PRIVACY BETWEEN UNITS
- TRANSITION ZONE FROM CROSS FALL TO CROWNED
- Upper floor is cantalivered

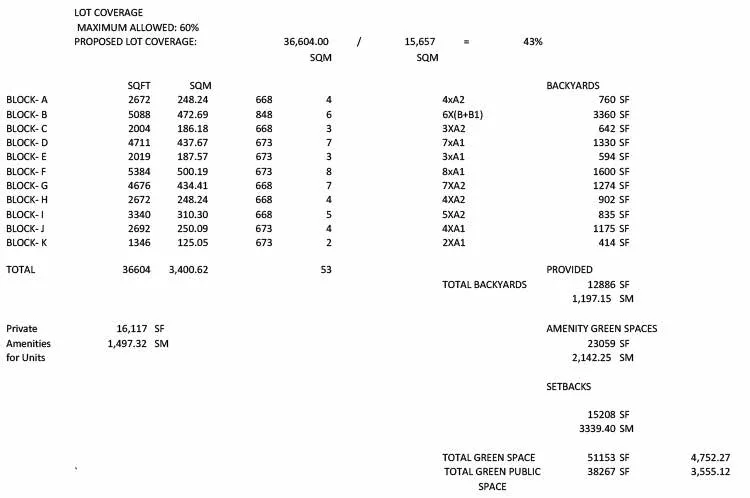

Building Labels
BUILDING-A, BUILDING-B, BUILDING-C, BUILDING-D, BUILDING-E, BUILDING-F, BUILDING-G, BUILDING-H, BUILDING-I, BUILDING-J, BUILDING-K
Sheet List
| Sheet Number | Sheet Name |
|---|---|
| A0-0 | SITE PLAN |
| A0-01 | PARKING INFO SHEET |
| A1-0 | GRADING PLAN |
| A1-1 | GRADING PLAN A |
| A1-2 | GRADING PLAN B |
| A1-3 | GRADING PLAN C |
| A1-4 | GRADING PLAN D |
| A2-11 | BUILDING A FLOOR PLANS ELEVATIONS AND SECTION |
| A2-12 A | BUILDING B FLOOR PLANS |
| A2-12 B | BUILDING B ELEVATIONS AND SECTION |
| A2-13 | BUILDING C FLOOR PLANS ELEVATIONS AND SECTION |
| A2-14 | BUILDING D FLOOR PLANS ELEVATIONS AND SECTION |
| A2-15 | BUILDING E FLOOR PLANS ELEVATIONS AND SECTION |
| A2-16 A | BUILDING F FLOOR PLANS AND SECTION |
| A2-16 B | BUILDING F FLOOR ELEVATIONS |
| A2-17 | BUILDING G FLOOR PLANS ELEVATIONS AND SECTION |
| A2-18 | BUILDING H FLOOR PLANS ELEVATIONS AND SECTION |
| A2-19 | BUILDING I FLOOR PLANS ELEVATIONS AND SECTION |
| A2-20 | BUILDING J FLOOR PLANS ELEVATIONS AND SECTION |
| A2-21 | BUILDING K FLOOR PLANS ELEVATIONS AND SECTION |
| A3-1 | STREET SECTIONS |
| A3-2 | SITE SECTIONS |
| A3-3 | SITE SECTIONS |
| A3-4 | SITE SECTIONS |
| A3-5 | SITE SECTIONS |
| A4.0 | COLOR BOARD |
| A-5-1 | UNIT FLOOR PLANS - TYPE A1 |
| A-5-2 | UNIT FLOOR PLANS - TYPE A2 |
| A-5-3 | UNIT FLOOR PLANS - TYPE B & B1 |
Revisions
| No. | Date | Revision |
|---|---|---|
| 1 | 202603240 | DP AMENDMENT |
| 2 | 20260717 | REV DP AMENDMENT |
| 3 | 20260805 | REV DP AMENDMENT |
Drawing Notes
THIS DRAWING MUST NOT BE SCALED. THE GENERAL CONTRACTOR SHALL VERIFY ALL DIMENSIONS AND LEVELS PRIOR TO COMMENCEMENT OF WORK. ALL ERRORS AND OMISSIONS SHALL BE REPORTED IMMEDIATELY TO THE ARCHITECT. COPYRIGHT RESERVED. THIS PLAN AND DESIGN ARE AND AT ALL TIMES REMAIN THE EXCLUSIVE PROPERTY OF MATTHEW CHENG ARCHITECT INC. AND MAY NOT BE USED OR REPRODUCED WITHOUT PRIOR WRITTEN CONSENT.
