Appendix C
A development-permit plan sheet associated with the site-plan materials and marked as Appendix C.
Key facts
- Development Permit No. DP26-0018
- City of Langford issued the Development Permit on 08/10/2026
Site Plan
Project: 2124 LONGSPUR DR, LANGFORD BC
Drawing: SITE PLAN
Scale: 1:250
Sheet: A0-0
Project address: 2124 Longspur Dr, Langford, BC
Drawing date: 2026-08-05
Drawn by: BK
Checked by: MC
Site plan notes and labels
- BUILDING-A
- BUILDING-B
- BUILDING-C
- BUILDING-D
- BUILDING-E
- BUILDING-F
- BUILDING-G
- BUILDING-H
- BUILDING-I
- BUILDING-J
- BUILDING-K
- INDOOR EXTRA BIKE SPACE PROVIDED

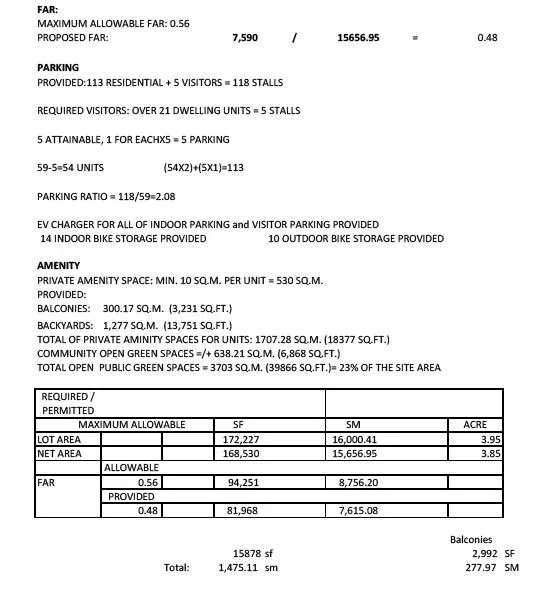

- EV CHARGER FOR ALL VISITOR PARKINGS AND INTERIOR PARKINGS PROVIDED
- OUTDOOR ADULT GYM
- INDOOR BIKE STORAGE
- OUTDOOR BIKE RACK
- MAILBOX
- MAILBOX ENTRANCE ON SIDE
- BRIDGE TO UPPER BACKYARD
- CEDARS FOR PRIVACY BETWEEN UNITS
- TRANSITION ZONE FROM CROSS FALL TO CROWNED
- ATTAINABLE UNITS: UPPER UNITS OF B-36 B-38 B-40 B-42 B-44
- UNITS RENTED AT MARKET
- ATTAINABLE UNITS
- OFFSITE VISITOR
- PMT
- NORTH
Sheet list
| Sheet Number | Sheet Name |
|---|---|
| A0-0 | SITE PLAN |
| A0-01 | PARKING INFO SHEET |
| A1-0 | GRADING PLAN |
| A1-1 | GRADING PLAN A |
| A1-2 | GRADING PLAN B |
| A1-3 | GRADING PLAN C |
| A1-4 | GRADING PLAN D |
| A2-11 | BUILDING A FLOOR PLANS ELEVATIONS AND SECTION |
| A2-12 A | BUILDING B FLOOR PLANS |
| A2-12 B | BUILDING B ELEVATIONS AND SECTION |
| A2-13 | BUILDING C FLOOR PLANS ELEVATIONS AND SECTION |
| A2-14 | BUILDING D FLOOR PLANS ELEVATIONS AND SECTION |
| A2-15 | BUILDING E FLOOR PLANS ELEVATIONS AND SECTION |
| A2-16 A | BUILDING F FLOOR PLANS AND SECTION |
| A2-16 B | BUILDING F FLOOR ELEVATIONS |
| A2-17 | BUILDING G FLOOR PLANS ELEVATIONS AND SECTION |
| A2-18 | BUILDING H FLOOR PLANS ELEVATIONS AND SECTION |
| A2-19 | BUILDING I FLOOR PLANS ELEVATIONS AND SECTION |
| A2-20 | BUILDING J FLOOR PLANS ELEVATIONS AND SECTION |
| A2-21 | BUILDING K FLOOR PLANS ELEVATIONS AND SECTION |
| A3-1 | STREET SECTIONS |
| A3-2 | SITE SECTIONS |
| A3-3 | SITE SECTIONS |
| A3-4 | SITE SECTIONS |
| A3-5 | SITE SECTIONS |
| A4.0 | COLOR BOARD |
| A-5-1 | UNIT FLOOR PLANS - TYPE A1 |
| A-5-2 | UNIT FLOOR PLANS - TYPE A2 |
| A-5-3 | UNIT FLOOR PLANS - TYPE B & B1 |
Revisions
| No. | Date | Revision |
|---|---|---|
| 1 | 202603240 | DP AMENDMENT |
| 2 | 20260717 | REV DP AMENDMENT |
| 3 | 20260805 | REV DP AMENDMENT |
Architect
MATTHEW CHENG ARCHITECT INC
UNIT 202 - 670 EVANS AVENUE
VANCOUVER, BC V6A 2K9
T: 604.731.3012
M: 604.649.0669
E: MATTHEW@MCAI.CA
THIS DRAWING MUST NOT BE SCALED. THE GENERAL CONTRACTOR SHALL VERIFY ALL DIMENSIONS AND LEVELS PRIOR TO COMMENCEMENT OF WORK. ALL ERRORS AND OMISSIONS SHALL BE REPORTED IMMEDIATELY TO THE ARCHITECT. COPYRIGHT RESERVED. THIS PLAN AND DESIGN ARE AND AT ALL TIMES REMAIN THE EXCLUSIVE PROPERTY OF MATTHEW CHENG ARCHITECT INC. AND MAY NOT BE USED OR REPRODUCED WITHOUT PRIOR WRITTEN CONSENT.
Additional drawing annotations: 180mm Rise for landing; 180mm Rise for landing; RS1; Upper floor is cantalivered.
